- Size: 1
- Place of Origin: Nanjing Tengda
- Brand Name: TENDA
- Model Number: TSH-75/SE-180
- Weight: 3500.000 kg

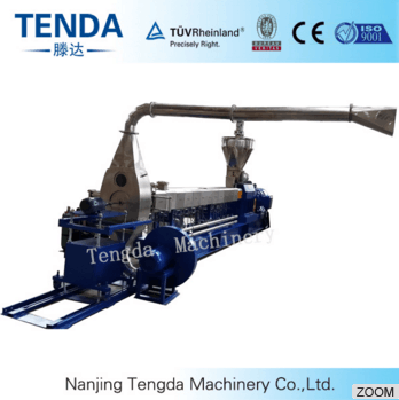

Our advantages of twin screw extruder :
1, Modular principle design for screw configuration andbarrel setup makes combination and cleaning convenient ,also easy to adapt to customers' requirements .
2, Different kinds of pelletizing modes can meet specific material properties: water-cooling strand pelletizing,
air-cooling hot-cut pelletizing, water-ring pelletizing,under water pelletizing, etc.
3, Screw elements and kneading blocks are made of high tool steel , with high corrosion-resistant and high wear-resistant.
4, Barrels are made of high quality nitrided steel ,corrosion proof and antifriction.
5, Vacuum system fulfills devolatilization to ensure the quality of polymer processing.
6. Famous brand parts and our own processing lathe
7.CE & ISO & TUV certification
Compounding and strand pelletizing line for incorporation of fillers,polymer blending,and fiber reinforcement:
Applications:
Fiber Reinforcement:glass fiber, carbon fiber reinforced PP. PA, PBT. ABS. AS, PC, POM, PPS, PET. etc.
Polymer Blending :blending of PC/A BS, PA/ABS,CP E/ABS, PPiEPDM, PAJEPDM.PP/SBS,etc .
Incorporation of Fillers:CaC03, Talc. Ti02, carbon black filled PE. PP, or EVA etc.
Cable Compounds:cable sheath, cable insulation compounds of LDPE, HDPE. LLDPE, MDPE: radiation-crosslinkable compounds. optical
fiber protection compounds, heat-shrinkable polymer compounds.
Special Compounds: PPR pipe compounds, PE compounds for crosslinked pipes, tobacco fillter compounds etc.
Manufacture of Masterbatches.
High Concentration Color Masterbatches:PE, ABS, PS. EVA, PET, PP etc.with high concentration of pigments and other processing aids.
Masterbatches with Flame-Retardants:PP. PA ABS, EVA, PBT, etc. with flame retardants and other addivives.
Special Functional Masterbatches:Masterbatches with anti-static. anti-bacteria. or other special functional fillers.
Masterbatches for Degradable Polymers:PP, EP, PS, etc. blended with high concentration of starch and other prodbssing aids.
Technical characteristics :
◆TSH Series Co-rotating Twin Screw Extruder are widely used in the compounding modification field, like the filling, reinforcement, toughening of plastics, engineer plastics and thermoplastics, and also for the special fibers and adhesive process., Main products are classified as TSH & TDH series, according to the max screw rpm and its torque rating. All models and parts have been upgraded with modernize CNC equipment. Our customers will have whole products range to meet their unique requirements.
◆As the segment structure design, the equipment can be configu red with diffe rent L/D, barrel desig n s, screen changer, pelletizing system, and/or electric control, to best meet unique requirements of different process. Cause our better understanding of the different material, the screw configu ration is designed based on rich experience and software technology to accomplish the material conveying, plasticizing compounding, shear and dispersion and pressurization.
◆Screw elements, accurately designed with CNC technology, are fully intermeshed, providing self-cleaning and easy interchangeability.
◆Upgrading accuracy and quality of the standard and high torque gear box. The special new type barrel structure and screw elements been manufactured with our powerful design experience.
- Size: 1
- Place of Origin: Nanjing Tengda
- Brand Name: TENDA
- Model Number: TSH-75/SE-180
- Weight: 3500.000 kg
Paraments :
TYPE | Dia(mm) | L/D | Speed(rpm) | Motor(kw) | Torque(N.M) | Output(Kg/H) |
TSH-20
| 22 | 32-60 | 400 | 3 | 4.8 | 2-10 |
600 | 4 | 4.8 | 2-10 | |||
TSH-30 | 30 | 32-56 | 400 | 7.5 | 4.8 | 5-30 |
500 | 11 | 4.8 | 5-40 | |||
600 | 15 | 6.6 | 15-55 | |||
TSH-35 | 35.6 | 32-60 | 400 | 11 | 4.6 | 20-60 |
500 | 15 | 4.2 | 30-70 | |||
600 | 22 | 6.1 | 40-95 | |||
TSH-40 | 41 | 32-60 | 400 | 22 | 6.0 | 40-110 |
500 | 30 | 5.5 | 70-150 | |||
600 | 37 | 6.8 | 90-170 | |||
TSH-52 | 51.4 | 32-60 | 400 | 45 | 5.1 | 120-220 |
500 | 55 | 5.2 | 155-275 | |||
600 | 75 | 7.1 | 200-355 | |||
TSH-65 | 62..4 | 32-64 | 400 | 55 | 4.8 | 160-280 |
500 | 75 | 4.8 | 220-380 | |||
600 | 90 | 5.9 | 220-400 | |||
TSH-75 | 71 | 32-64 | 400 | 110 | 4.6 | 330-550 |
500 | 132 | 4.6 | 330-660 | |||
600 | 160 | 5.5 | 500-850 | |||
TSH-85 | 81 | 32-64 | 500 | 200 | 5.8 | 600-1000 |
600 | 220 | 5.3 | 650-1100 | |||
600 | 280 | 6.7 | 850-1400 | |||
TSH-95 | 93 | 32-64 | 500 | 250 | 4.7 | 750-1250 |
600 | 315 | 5.0 | 950-1600 | |||
600 | 450 | 7.1 | 1350-2250 | |||
TSH-120 | 116 | 32-56 | 400 | 315 | 4.4 | 950-1600 |
500 | 450 | 5.0 | 1350-2250 | |||
500 | 550 | 6.1 | 1800-3000 | |||
TSH-135 | 133 | 32-48 | 400 | 550 | 4.4 | 1650-2750 |
500 | 750 | 5.0 | 2250-3750 | |||
500 | 900 | 6.1 | 3000-5000 |
